PANA PREMIER FLAT
IV 68; IV 80
Aligned sash and frame from outside are responsible for a pure and modern look allowing more freedom in architectural solutions.
Specifications:

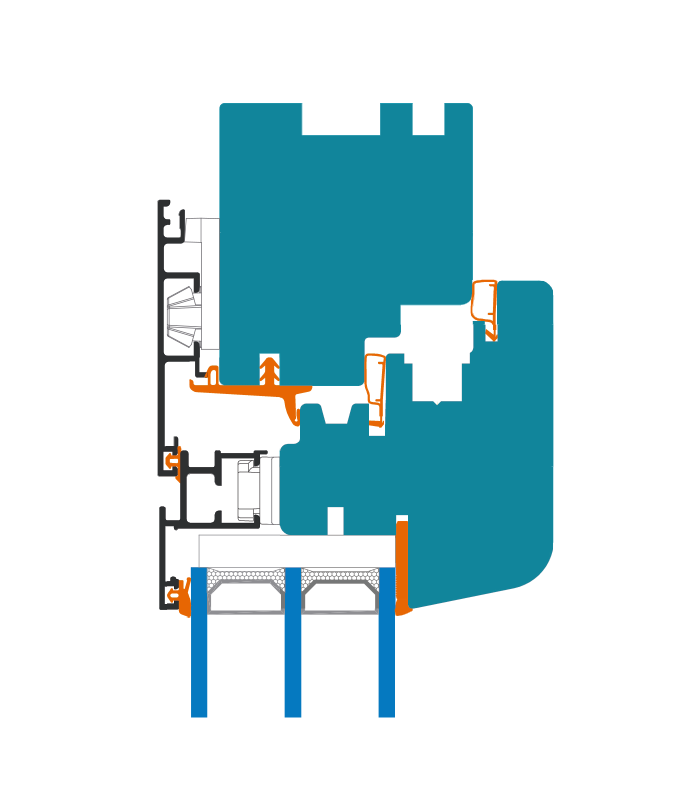

| Profile | wood profile thickness 68 mm, total thickness with aluminum cover 78,5 mm – FLAT Model is also available in profile 68 mm |
| Best thermal value | Uw 0,94 W/M2K (with profile 68 mm and triple glazing Ug 0,5); or Uw 0,80 W/m2K (with triple glazing Ug 0,5 and wooden profile 78,5 mm) |
| Aluminum cover | strong construction with its welded edges and thermal-bridge, fastened on wooden profile |
| Gasket | 4 high quality gaskets – 2 Q-lon gaskets on sash and 2 EPDM gaskets on frame and aluminum cover |
| Hardware | visible and hidden ( hidden hardware on profile 68 mm to carry up to 80 kg and on profile 78,5 mm to carry up to 150 kg |
| Design | sash /frame aligned from outside, no glazing bead inside. Modern, square edged wood profile design in profile 78,5 mm while on wooden profile 68 mm in soft variation |
| Wood types | spruce, larch, oak, meranti |
